Harmar Pinnacle Premium Stair Lift

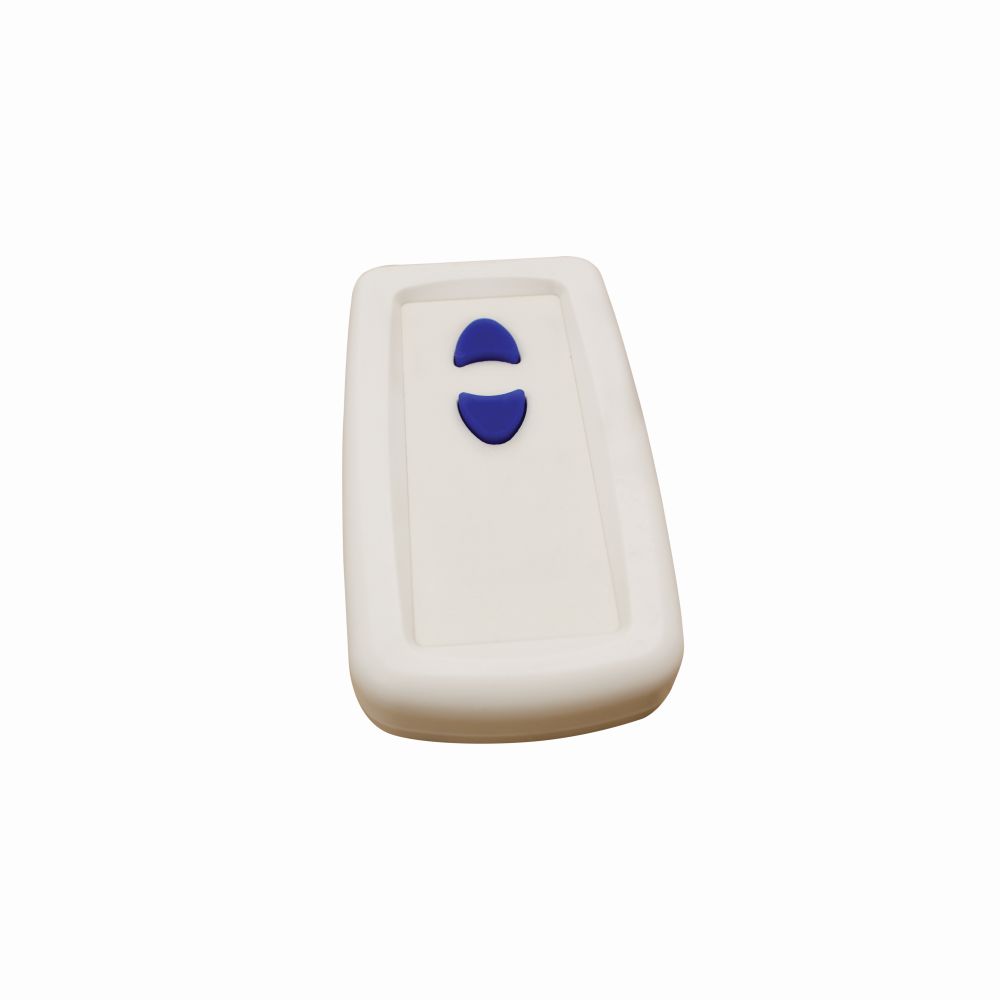

  • Remote
The Pinnacle Premiun has earned its name and reputation for standing above the rest. Design, Form and Function come together to make Pinnacle the most reliable, durable, and sought after stair lift on the market.

What makes Pinnacle different? It's what you don't see, the patented Helical Worm Gear and reinforced Nylon Polymer Gear Rack. This innovative drive system eliminates maintenance, provides you savings with lower energy bills, and delivers a smooth, stable ride you can rely on.

Although exceptionally compact, Pinnacle boasts a 350 lb capacity with a wide, comfortable seat that swivels at the top landing to aid in safely entering and exiting the lift. Safety sensors prevent the lift from running if the seat is not in the proper position or if something is blocking the stairway or track.

Questions? Contact Us.

Specifications
  • Drive Type

    Polymer Worm / Worm-Rack

  • Battery Powered

    Yes

  • Self Installable

    Yes

  • Basic Installation Included

    No

  • Standard Capacity

    350 lb

  • Max Track Length, Standard

    15.5'

  • Max Track Length, Optional

    70'

  • Track Material

    Aliuminum

  • Seat Width

    20"

  • Seat Depth

    15.5"

  • Swivel Seat

    Yes

  • Flip-Up Seat

    Yes

  • Flip-Up Armrests

    Yes

  • Constant Pressure Controls

    Yes

  • Footrest Safety Sensor

    Yes

  • Folded Chair From Wall

    11"

  • Distance From Wall Required

    7"

  • Non-Folded Unit Footprint

    22.5"

  • Track Width

    4.875"

  • Call Stations Included

    Wireless

  • Rail Angle, Min

    32°

  • Rail Angle, Max

    52°

  • Digital Diagnostics Display

    No

  • Power Cord Lengths

    10' with the charger box in the middle

  • Key Lock

    Yes
