Harmar Highlander VPL

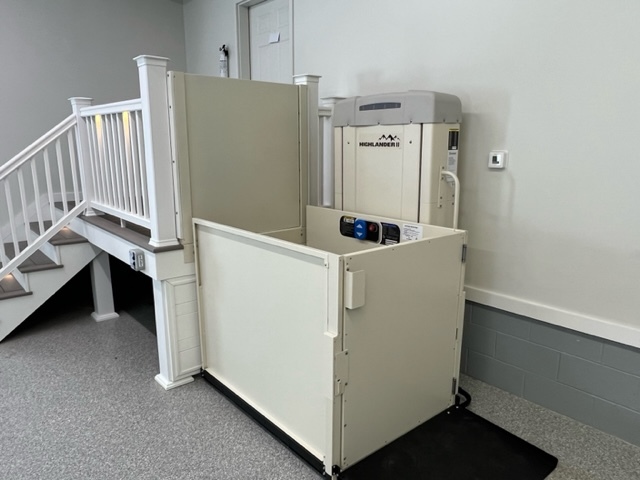

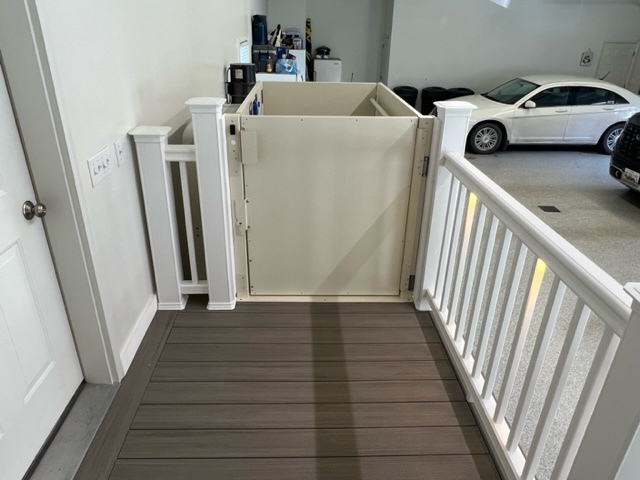

  • Shown Inside a Garage

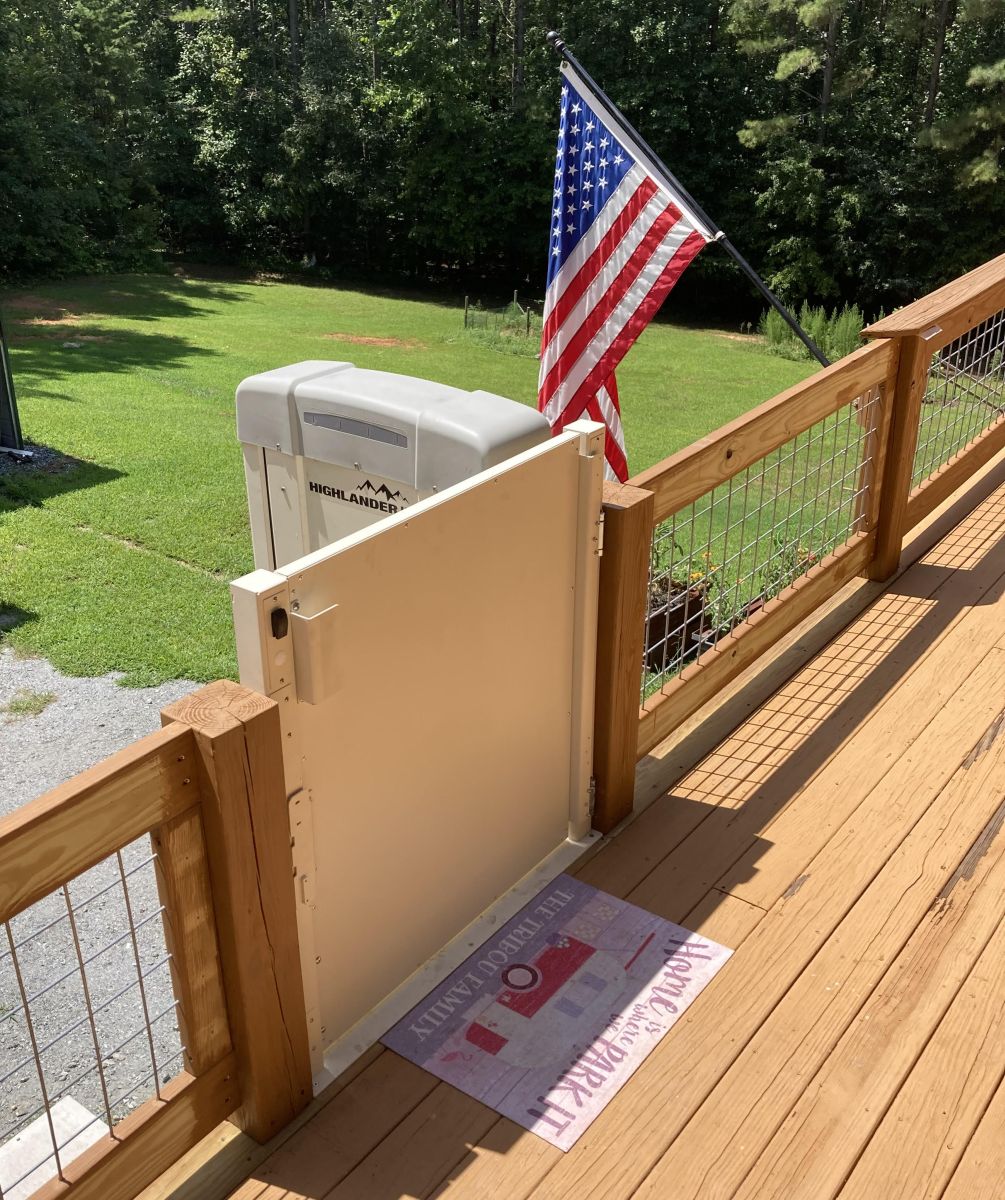

  • Inside Gate at Top

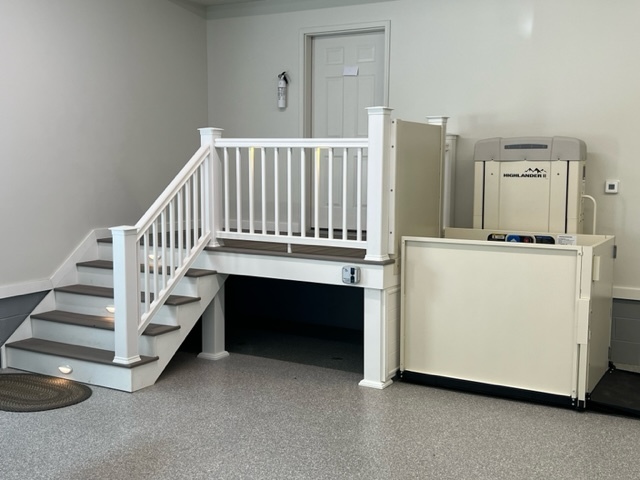

  • Inside on Ground Level

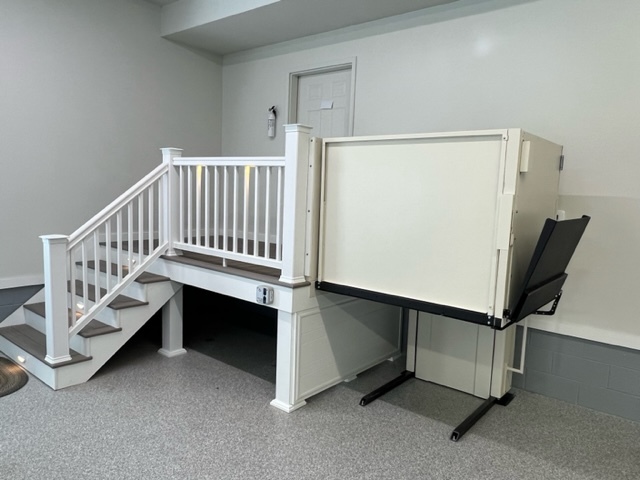

  • Inside Lifted

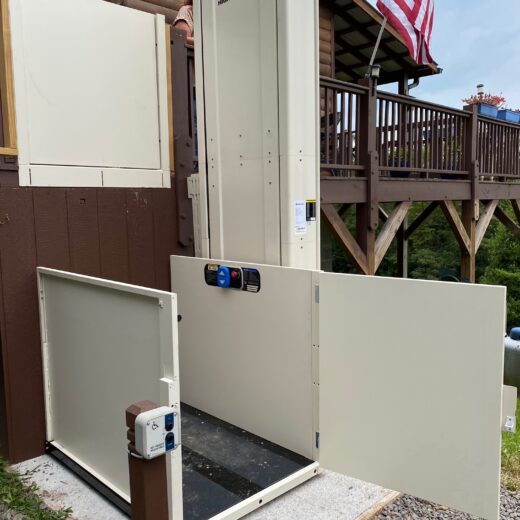

  • Tall Unit at Bottom

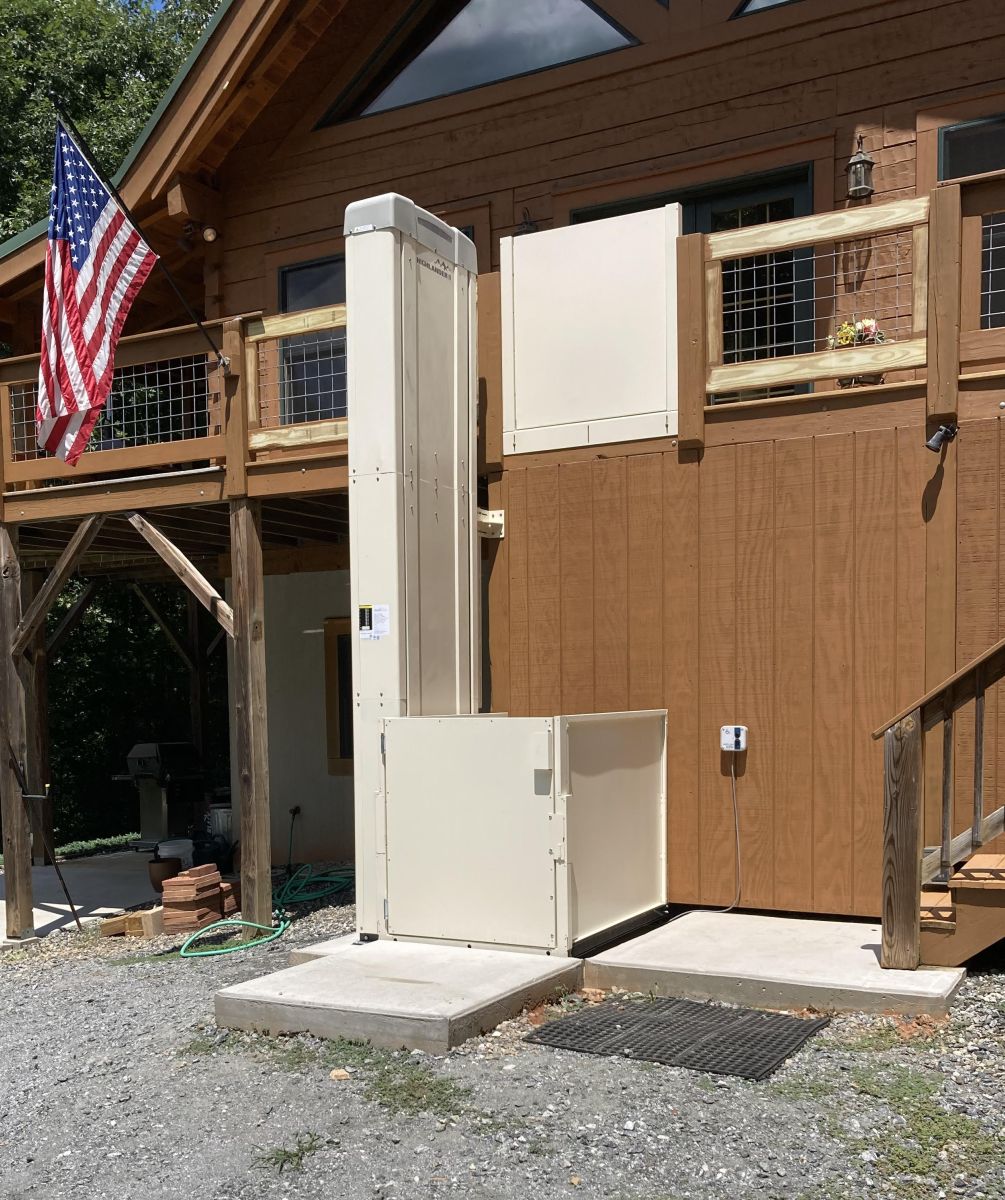

  • Tall Unit Showing Top Gate

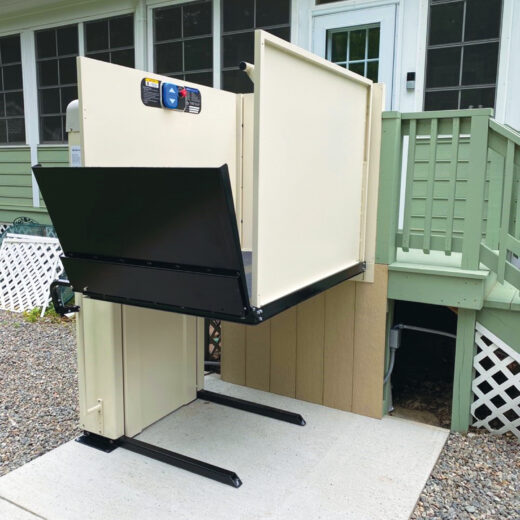

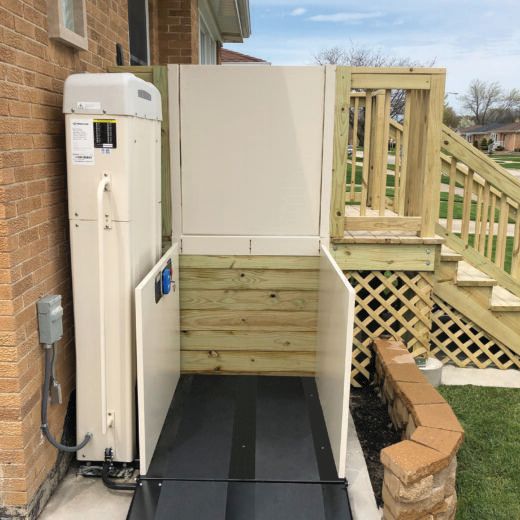

  • Standard Unit Outdoors - Angle View Gate Open
  • Standard Unit Outdoors - Front View
The Highlander II represents a new generation and evolution in Vertical Platform Lifts. New technologies introduced in the Highlander II make this VPL series more reliable, easier to use, easier to service, easier to troubleshoot, and the premiere market choice for platform lift solutions.

Innovation is at the heart of this next generation Vertical Platform Lift. The Highlander II is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.

Features:
  • Guardian System: 4 bright, high-contrast LED status lights give continual performance feedback from the lift's control board. Monitoring almost every critical system, Guardian can provide immediate feedback and guidance.
  • SteadyDrive: Ensures a smooth, quiet and stable lift.
  • ReadyUPS System: True battery back-up option that can deliver at least 5-cycles in the event of power loss.

Questions? Contact Us.

Specifications
  • Lifting Capacity

    750 lb

  • Standard Lift Height

    53"

  • Maximum Lift Height

    171"

  • Arrives Assembled

    Yes

  • Standard Drive System

    1" Diameter Acme Screw Drive

  • Optional Drive System

    None Available

  • Battery Powered Option

    Yes

  • Constant Pressure Platform Controls

    Yes

  • Emergency Stop Platform Control

    Included

  • Alarm Button

    Optional

  • Keyed Controls

    Optional

  • Call-Send Controls

    One Per Stop Included

  • Keyed Call-Send Controls

    Keyed and/or Wireless

  • Platform Type

    Solid with Non-Skid Coating

  • Standard Platform Size

    36" x 48" (34" Usable Width)

  • Optional Platform Sizes

    36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable)

  • Standard Platform Configuration

    Straight-Thru Access

  • Optional Platform Configurations

    Same Side Entry-Exit, 90 Degree Adjacent Access

  • Upper Landing Gate

    Optional

  • Upper Access Ramp

    None Available

  • Lower Access Ramp

    36" Fixed or Auto-Folding Standard, Optional 42" Fixed or Auto-Folding

  • Grab Rail

    Included

  • Guard Panel

    36", Optional 42"

  • Maximum Stops

    3

  • Lift Speed (FPM)

    10

  • Portable

    None Available

  • Other Options

    Fire-Rated Doors, Automatic Door Openers
