Crest Outdoor Elevator

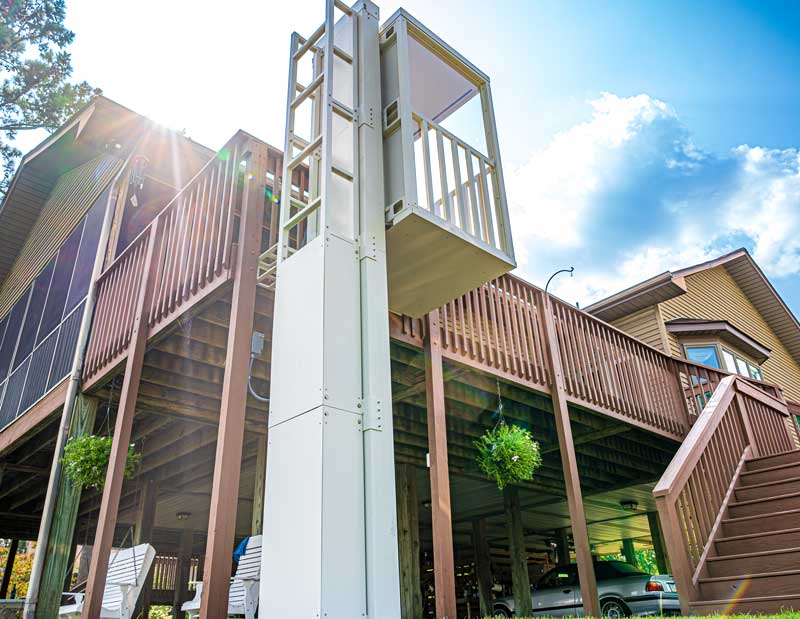

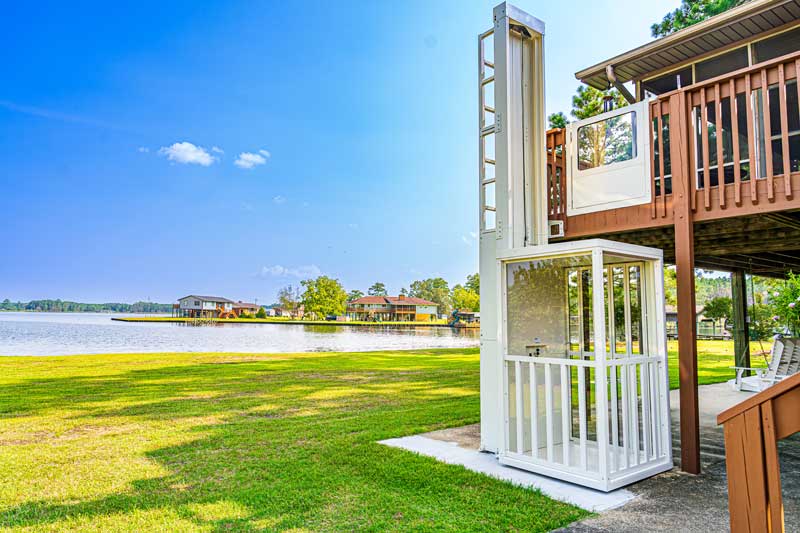

  • Crest Outdoor Elevator Example

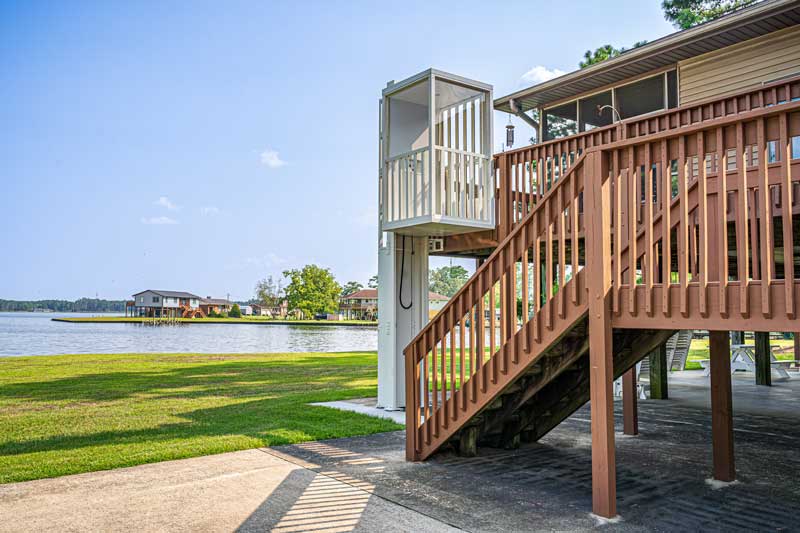

  • Crest Outdoor Elevator Example 2

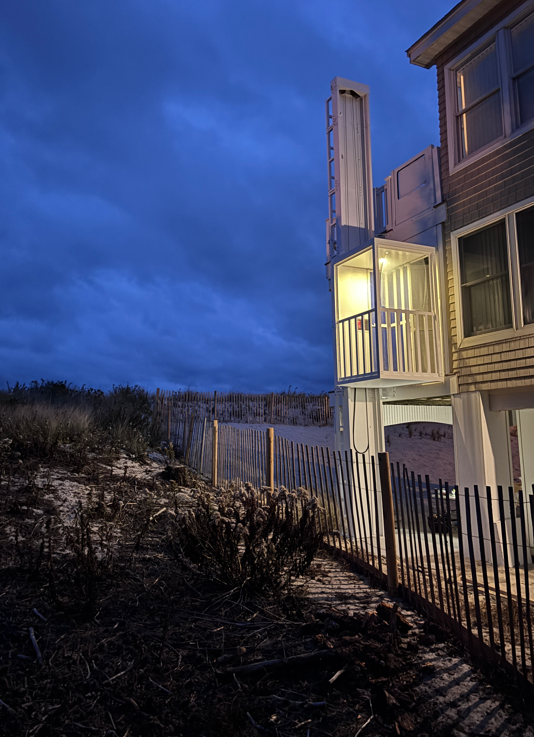

  • Crest Outdoor Elevator Example 3

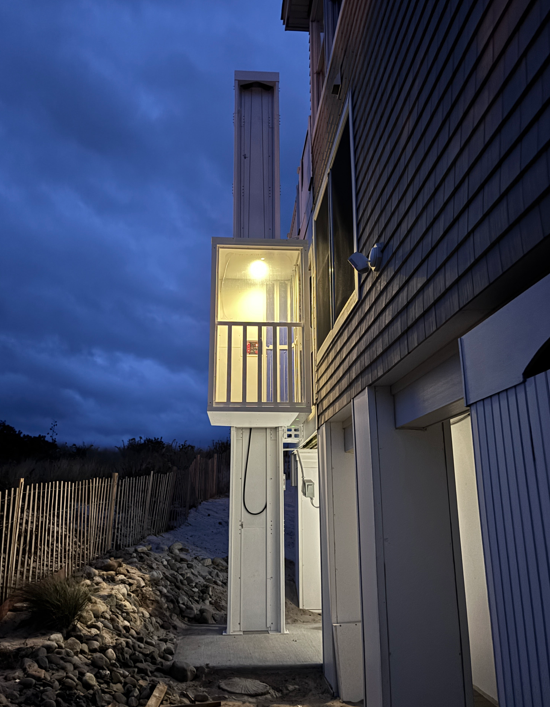

  • Crest Outdoor Elevator Example 4

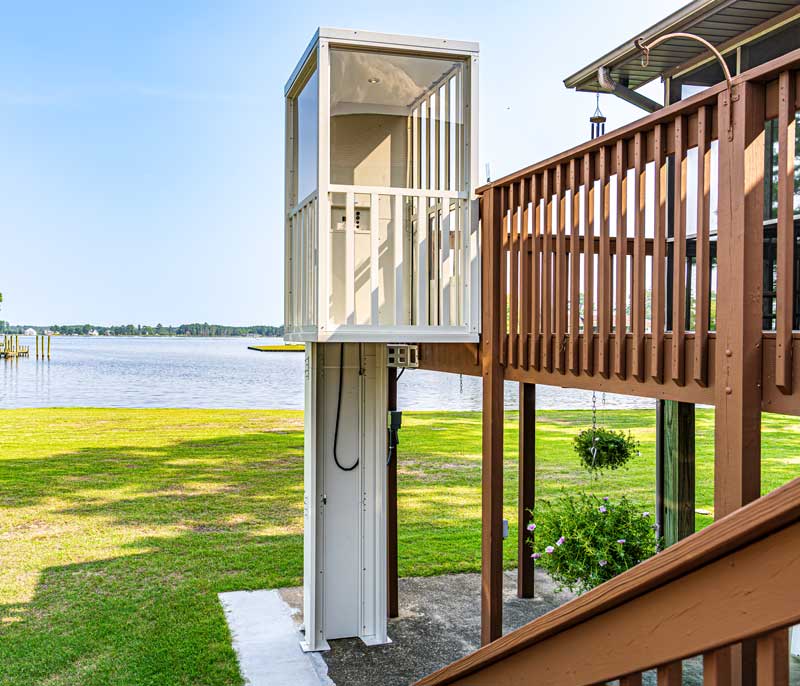

  • Crest Outdoor Elevator Example 5

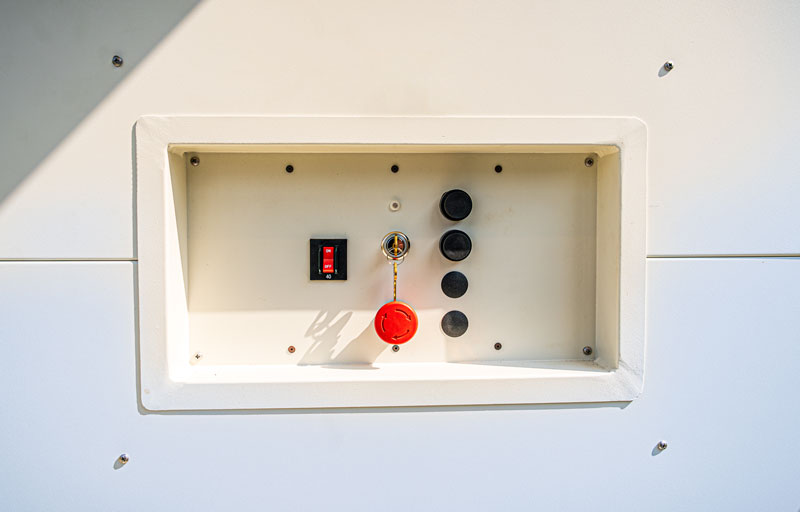

  • Crest Outdoor Elevator Controls

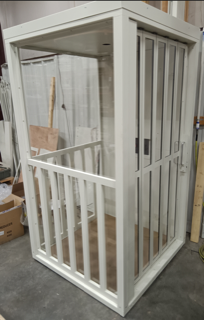

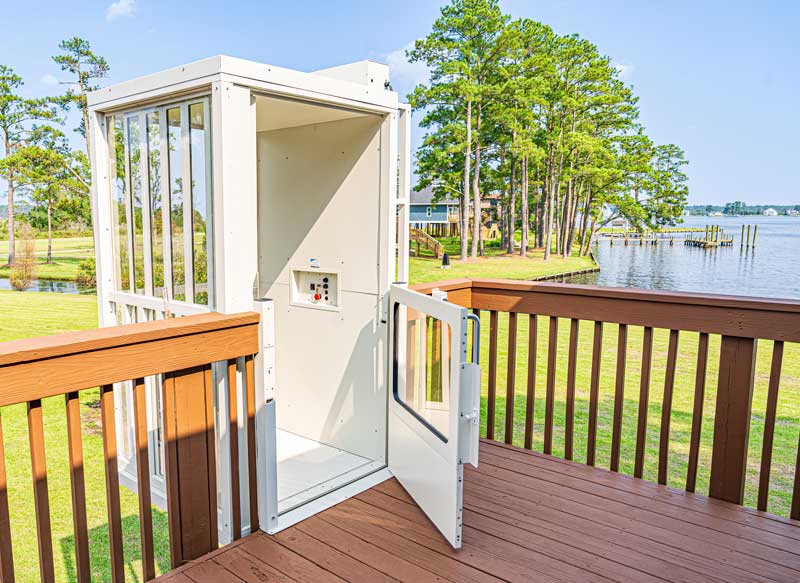

  • Door Open

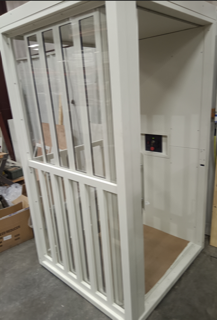

  • Door Closed

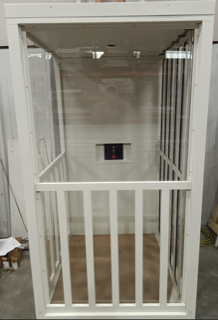

  • Looking Straight In Through Clear Vision Wall Panels
The Crest Outdoor Elevator can operate as a stand-alone unit be installed in an elevator hoistway or in an optional enclosure providing you affordable and safe travel between floors of your home. The Crest Outdoor can accommodate a wheelchair and provides several options for entry/exit. There is no need for a pit nor a machine room on this battery powered, modern elevator.

Included Features:
    Mechanical:
  • Maximum travel to 21' (14’ standard)
  • Capacity: 500 lbs
  • Extruded aluminum track (powder coated)
  • Stainless steel hardware
  • Dual winding cable drums with 1/4" aircraft cables

  • General:
  • Shaftless
  • Speed: 15 fpm
  • Maximum number of stops: 4
  • Data plates and capacity tags

  • Car:
  • Finish: RAL 9002 powder coated metal
  • Configuration: Single car entry
  • Top and bottom safety sensors
  • Clear vision panels in walls
  • Sliding car door with clear vision panels

  • Controls:
  • Battery powered
  • Battery charger
  • Circuit board controller
  • Constant pressure controls
  • RF wireless call stations
  • Diagnostic indicator
  • Automatic lighting

  • Safety Devices:
  • Limit switches at each stop
  • Final limit at top and bottom
  • Emergency stop
  • Slack cable device
  • Honeywell interlocks on car and at each landing

  • Limited Warranty:
  • 1 Year: Batteries
  • 2 Years: Parts
  • 3 Years: Drive Train / Circuit Board

Call for Shipping Price

Questions? Contact Us.

Specifications
  • Applications

    Residential

  • Capacity

    500 lb

  • Maximum Travel Distance

    21'

  • Speed (per minute)

    15'

  • Minimum Overhead Required

    90"

  • Drive

    Travels with Car

  • Motor/Pump

    DC Motor

  • Warranty

    1 Year Battery Warranty – 2 Year Warranty on Parts, 3 Year Warranty on Drive Train and Circuit Board

  • Type

    Dual Winding Drum

  • Cab Heights

    76

  • Power Requirement

    110 VAC 2A

  • Pit Depth

    Pit Not Required

  • Emergency

    Emergency Stop, Telephone in Car

  • Safety

    LED Light in Car, Non-Slip Floor, Safety Pan, Slack Cable, Honeywell Interlocks on car and each landing
