Crest HD Stair Lift Outdoor
The Crest HD Stair Lift Outdoor comes to you at a low price but feature rich.
- ETL listed A17.5 / B44 - A18.1

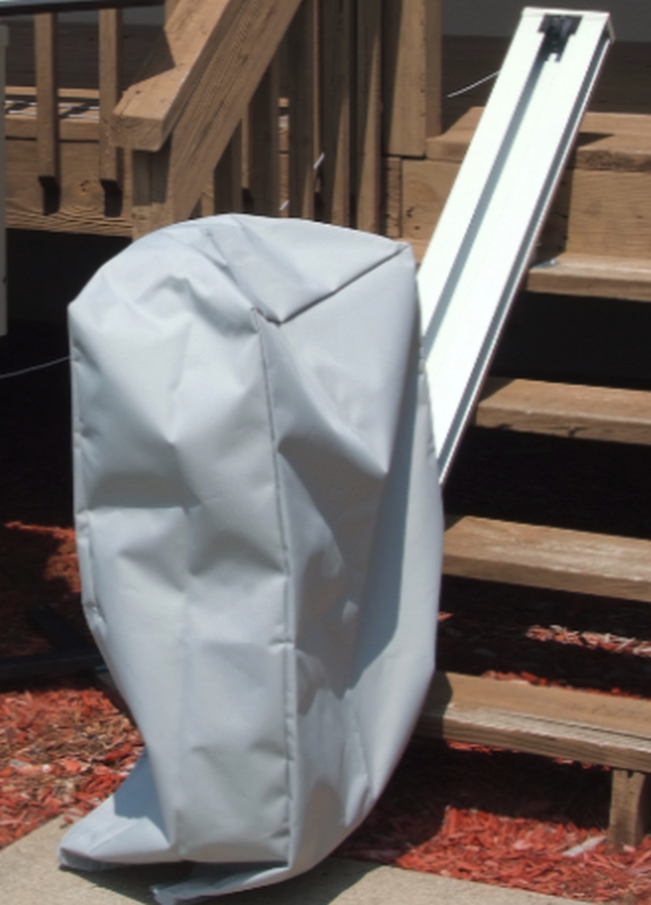

- Heavy duty canvas cover
- Outdoor powder coating
- Sealed switches and waterproof connections
- Rack and pinion drive
- Interior gear rack
- 25 to 45 degree angle applications
- Quick adjustment limit cams
- Folds to 12.5" from the wall
- Chassis weight 40 lbs.
- Track weight for 8' section 36 lbs.
- Wireless seat control
- Wireless remote controls for upper and lower landings
- 15' track standard, additional sections available
- Chassis mounted auxiliary control switch
- Obstruction audio beep notification
- Battery operated system
- Low profile stair-hugger track and bracket design – 2-1/2" track rest on stairs
- Constant pressure controls
- 3" to 6" horizontal extension at top landing (depending on angle)
- 90 degree swivel seat assembly at top landing
- ANODIZED aluminum rail

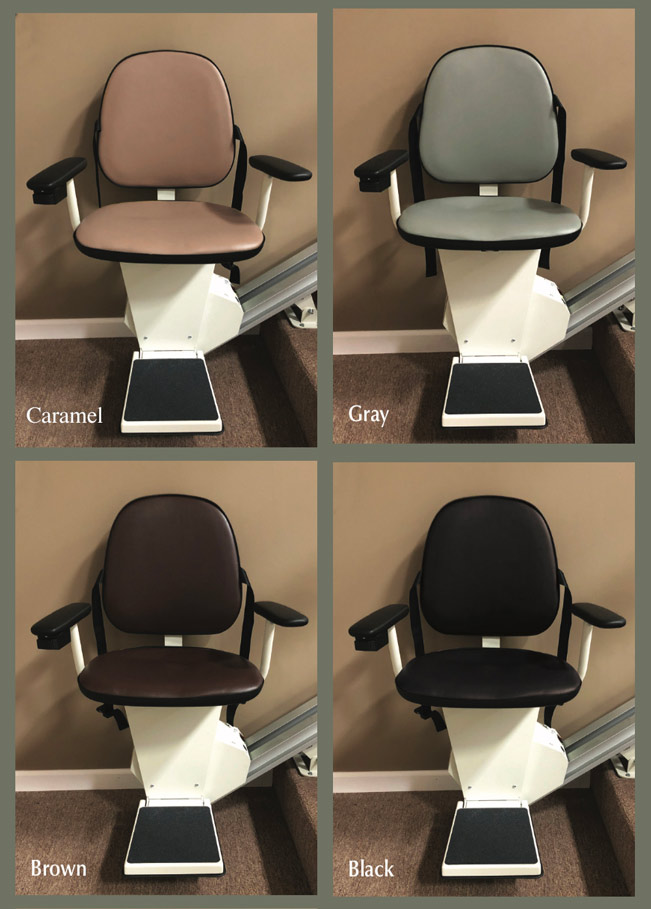

- Black, Gray, Beige or Brown upholstery
- Seat belt
- Folding arm rest
- Proudly made in the USA!
Questions? Contact Us.
Documents
Specifications
Drive Type
Rack and Pinion
Battery Powered
Yes
Self Installable
No
Basic Installation Included
No
Standard Capacity
350 lb
Max Track Length, Standard
15'
Track Material
Anodized Aluminum
Swivel Seat
Yes
Flip-Up Seat
Yes
Flip-Up Armrests
Yes
Constant Pressure Controls
Yes
Footrest Safety Sensor
No
Warranty
1 year on batteries, 2 years on parts, 5 years on drive train, motor and circuit board
Track Width
6.5"
Call Stations Included
2
Swivel Seat Rotation
90 Degrees at top landing
Rail Angle, Min
25°
Rail Angle, Max
45°
Digital Diagnostics Display
No
Key Lock
No
